Shindagha tunnel

The Shindagha tunnel runs underneath The Creek, downtown Dubai.

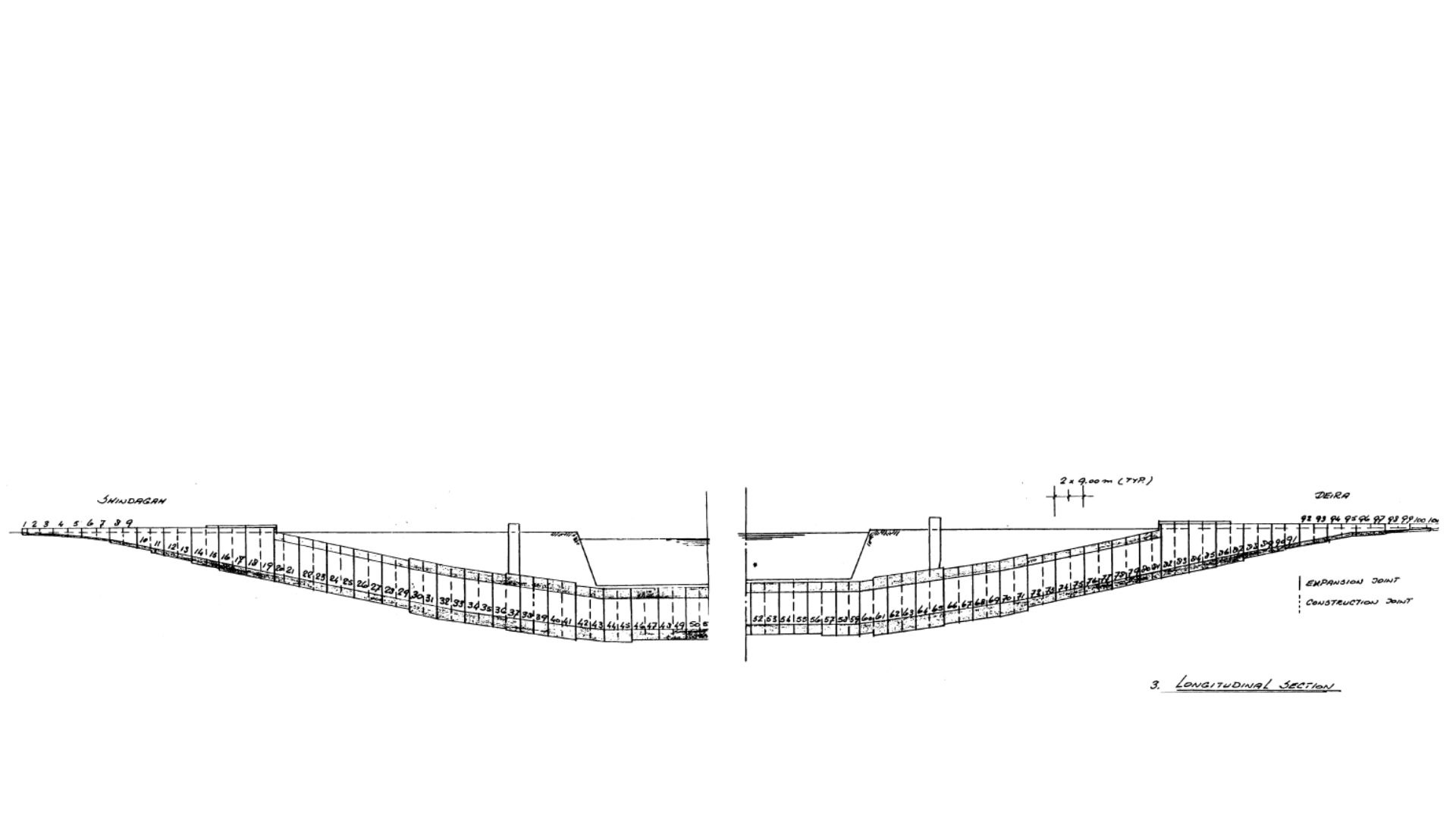

A technical drawing of the Shindagha Tunnel in Dubai

Project description

The structure was built in-situ and dates from the late 1970’s. It consists of a 550 m long closed tunnel with approximately 200 m long open-ramp approach sections at either side. The road tunnel accommodates 2 x 2 traffic lanes and has a 3rd bore, specifically for pedestrians.

Shortly after opening, the tunnel required already substantial repairs due to chloride induced deterioration of the concrete (reinforcement). In an attempt to stop the deterioration process, the tunnel was fully renovated in the late 1980’s; amongst others reinforcement was replaced, an additional layer of high quality concrete was added to the inside of the tunnel as well as an airtight coating.

In the current situation, the Shindagha tunnel has an important role in the Dubai road network and the owner / operator needed assurance regarding the expected remaining life time of the tunnel. This information was, amongst others, needed to include possible replacement / expansion options in the development plans for the Dubai road network.

Scope of work

TEC was contracted by the tunnel operator to assess the remaining life expectancy of the tunnel and provide consultancy regarding improvements in the maintenance regime.

As part of their assignment, TEC reviewed the available as-built drawings and reports (mainly of the renovation works), as well as inspection and test reports that were prepared by various companies that were involved in the maintenance of the Shindagha tunnel since its renovations.

In addition, TEC made various numerical analyses to assess the robustness of the structure.

The results of the analyses were combined with the findings regarding the development of deterioration mechanisms in the structure over time. This allowed TEC to assess the expected remaining life-time of the structure on a ‘global’-level, to the satisfaction of the Client.

Project facts Shindagha tunnel

  • Client
    Dubai Road & Transport Authority
  • Project duration
  • Country
    United Arab Emirates
  • Project phase
    Operational phase
  • Location
