Blauwe Ader: Hasseltstraat - Midden Brabantweg

Project description

This pipeline transports (rain) water from the centre to the border of the city. During the first 15 years after completion, both rainwater and first flush wastewater will be collected in the pipeline, which will be pumped out by a pump station to a Wastewater Treatment Plant (WWTP). After 15 years, the Blauwe Ader will act as a discharge pipe for rainwater which will be discharged in a waterpark. Only the first flush wastewater will still be pumped to the WWTP.

Diameter / Length:

DN 1.6m / 957 m
DN 1.8m / 2.360 m (900 m – 670 m – 790 m)

Scope of work

TEC parent company Witteveen+Bos was responsible for:

• Alignment study based on a multi-criteria analysis.
• Collecting stakeholders’ requirements.
• Drawing up an integrated contract based on the UAV-GC 2005 (D&C type of contract).
• Study micro tunnelling Rueckertbaan: drawing up sketch designs and cost estimates.
• Project management and coordination of the municipality of Tilburg and the construction JV  / monitoring progress and planning.
• Contract and risk management (using Relatics).
• Managing contract management plan.
• Coordinate, organize, plan SCB (risk-based contract management) audits:
  • System audits.
  • Process audits.
  • Product audits.
• Assessment and acceptance final design and construction design. Associated expertise (not exhaustive):
  • Sewerage technology.
  • Above and below ground infrastructure.

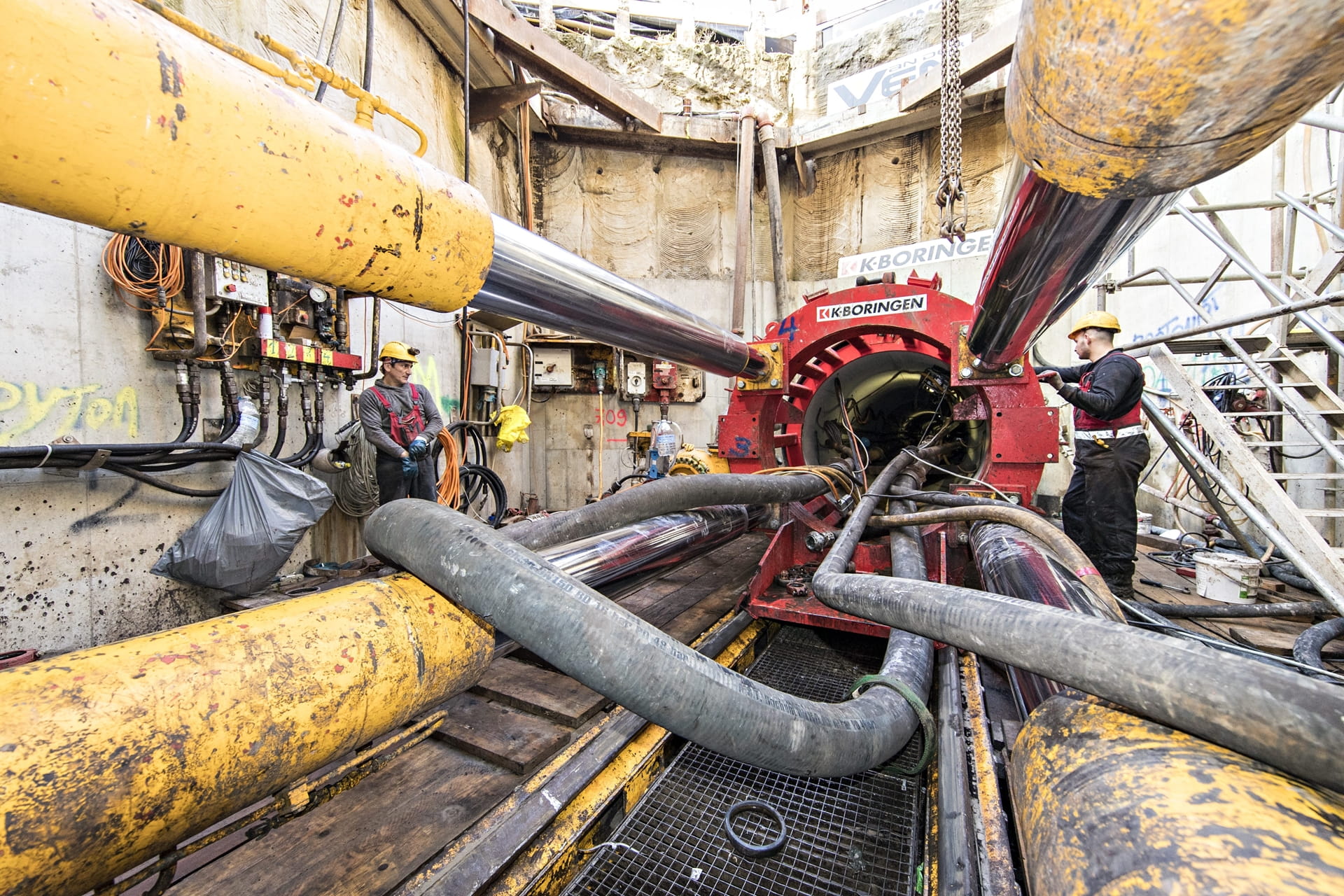

  • Micro tunnelling.
  • Geotechnics: sheet piling, quay construction Wilhelmina Canal, grout anchors.
  • Cutter Soil Mix technique.
  • Construction technique: stamps, wells, underwater concrete.
  • Permits.
  • Dewatering.
• Process reports SCB tests.
• Assessing and advising contract mutations.
• Assessing and advising method statements.
